TO220 Power Resistor - ML Series

TO220 Power Resistor - ML Series

◆ ML25  (25W) Resistance: 0.01R ~ 51K Tolerance: ±1%, ±5%.

◆ ML35  (35W) Resistance: 0.01R ~ 51K Tolerance: ±1%, ±5%.

◆ ML50  (50W) Resistance: 0.01R ~ 51K Tolerance: ±1%, ±5%.

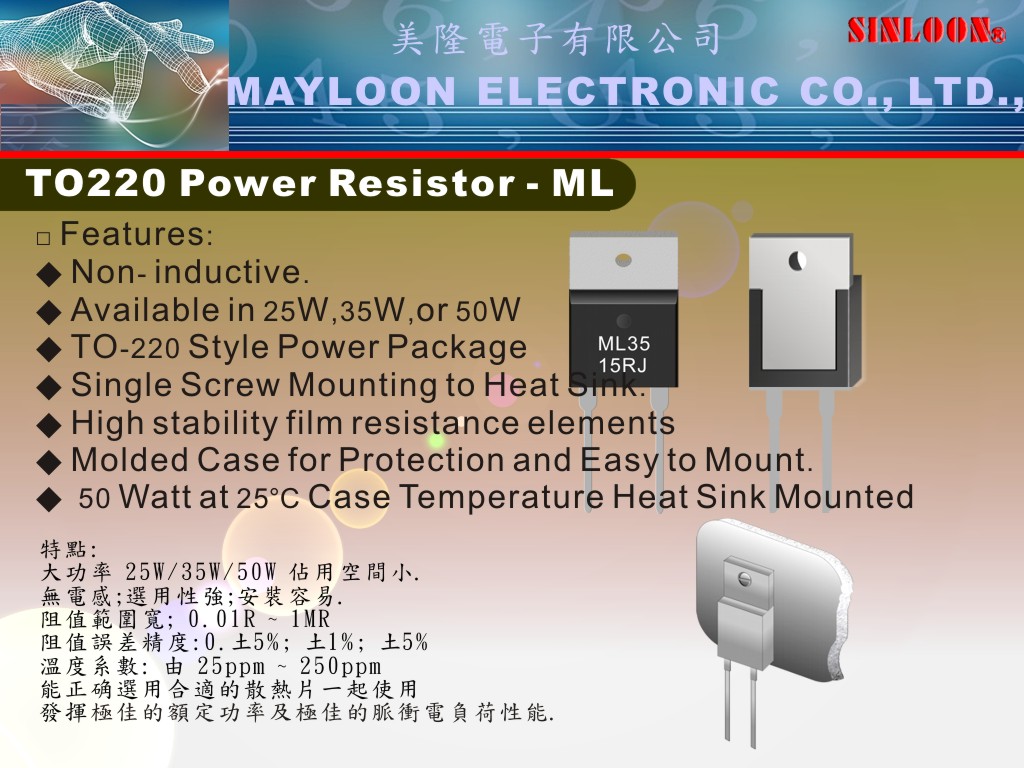

▓ Features:

◆ Non- inductive.

◆ Available in 25W,35W,or 50W

◆ TO-220 Style Power Package

◆ Single Screw Mounting to Heat Sink.

◆ High stability film resistance elements

◆ Molded Case for Protection and Easy to Mount.

◆ 50 Watt at 25°C Case Temperature Heat Sink Mounted

Mayloon Products Power Resistor ML series resistors satisfy demanding applications for accurate and stable power resistors housed in the convenient TO-220 case. The resistance element is Isolated from the mounting tab by an alumina ceramic layer, providing very low ther- mal resistance and ensuring high insulation resistance between terminals and tab.

The non-inductive design makes these products especially useful in high frequency and high speed pulse applications.

▓ TO220 Power Resistor MF/ML Series

1.MF18 (18W) Resistance : 0.05R ~ 1M Tolerance: ±1%, ±5%.

2.MF20 (20W) Resistance : 0.05R ~ 1M Tolerance: ±1%,± 5%.

3.MF30 (30W) Resistance : 0.5R ~ 1M Tolerance:± 1%, ±5%.

4.MF50 (50W) Resistance : 0.2R ~ 1M Tolerance: ±1%, ±5%.

5.TO247 ML100(100W) Resistance: 0.1R ~ 51K Tolerance: ±1%, 5±%.

Applications (應用)

UPS (不斷電供電系統)

Snubbers circuits. (緩衝電路)

Voltage Regulation. (電壓調變器)

Low Energy Pulse Loading. (脈衝電路)

Gate Resistors in Power Supplies. (穏壓電源)

Terminal Resistance in RF Power Amplifiers. (射頻功率放大器)

Load and Dumping Resistors in CRT Monitors. (示波器)

※ Other requirement not specified in the specification sent by e-mail inquiries welcome.

※ Mayloon characteristic parameters of electronic product specification changes of updates without prior notice.
