智慧電源+微波（雷達）感測器開關系列 Smart Power + Microwave (Radar) Sensor Switch Series |
|
|
|
Model No. |
23Y146 |
|
|
Working Voltage |
AC180 – 265V 50/60Hz |
|
|
Output Voltage |
DC24-82V |
|
|
Current |
210mA±10mA (Customizable) |
|
|
Controllable Loading |
8 – 24W |
|
|
Power consumption |
≦1W (Standby) |
|
|
Frequency range |
5.8GH±75MHz, ISM wave band |
|
|
Transmitting power |
<0.5mW |
|
|
Induction radius |
≧3meter |
|
|
Detection angle |
360° (ceiling installation); 160° (wall installation). |
|
|
Start Lux setting |
7 – 20 Lux |
|
|
Sensitive distance |
6 – 8m |
|
|
Sensing speed |
0.5 – 3m/s |
|
|
Time delayed |
40±10secs |
|
|
Typical mounting height |
3 Meters (up to 6 meters) |
|
|
Operating temperature |
-20℃ ~ 45℃ |
|
|

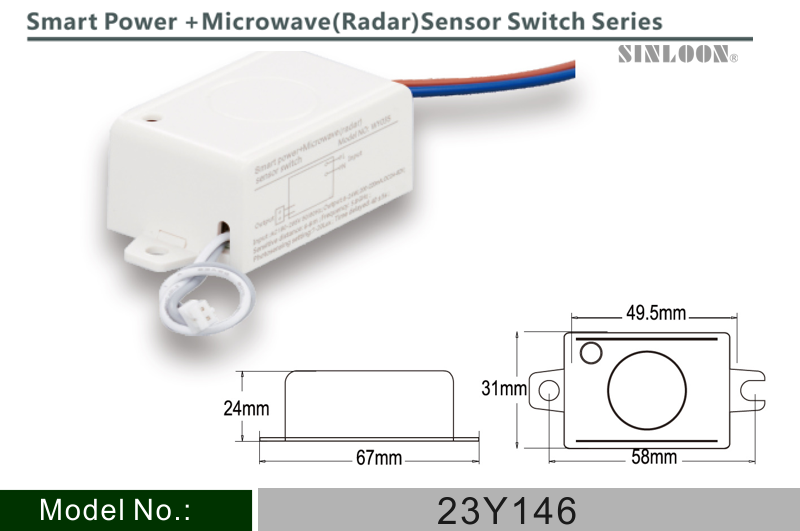

Size (mm) |
L67*W31*H24 / Quantity: 100 pcs / Carton. |
|
