微波雷達感測器開關系列 Microwave (Radar) Sensor Switch Series |
|
|
|
Model No. |
21CZ10913 |
|
|
Working Voltage |
AC220V / 50Hz |
|
|
Controllable Loading |
≦ 300W ≦ 3 lamps |
|
|
Standby power consumption |
≦ 1W |
|
|
Frequency range |
5.8GH±75MHz, ISM wave band |
|
|
Transmitting power |
<0.5mW |
|
|
Induction radius |
≧3 meter |
|
|
Detection angle |
360° (ceiling installation); 160° (wall installation). |
|
|
Inductive distance |
5% ~ 100% (Gear selection, Max 8m) |
|
|
Start Lux setting |
≦7Lux -20Lux. |
|
|
Time delayed |
10 secs ; 45 secs ; 4 mins (gear selection) |
|
|
Sensing speed |
0.5 – 3m/s |
|
|
Typical mounting height |
3 meters (up to 6 meters) |
|
|
IP Rating |
IP20 |
|
|
Operating temperature |
-20℃ ~ 45℃ |
|
|

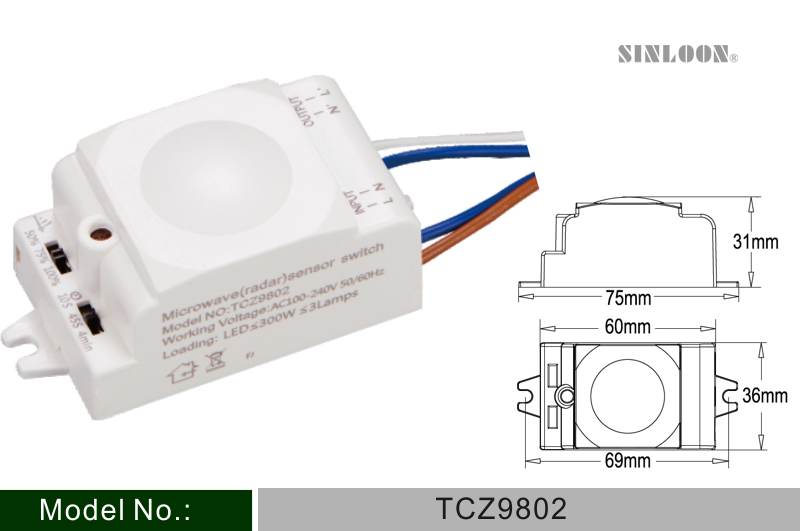

Size (mm) |
L75*W36*H31 |
|
|
Packing |
Quantity: 40 Box, 400 pcs / Carton |
|
