微波雷達感測器開關系列 Microwave (Radar) Sensor Switch Series |
|
|
|
Model No. |
21CZ4914X |
|
|
Working Voltage |
AC220V 50Hz |
|
|
Controllable Loading |
≦ 300W ≦ 3 lamps |
|
|
Standby power consumption |
≦ 1W |
|
|
Frequency range |
4.1GH±75MHz, ISM wave band |
|
|
Transmitting power |
<0.5mW |
|
|
Induction radius |
≧3 meter |
|
|
Detection angle |
360° (ceiling installation); 160° (wall installation). |
|
|
Inductive distance |
3-5m |
|
|
Start Lux setting |
7- 20 Lux. |
|
|
Sensing Speed |
0.5-3M/s |
|
|
Time delayed |
20±5sese |
|
|
Sensing speed |
0.5 – 3m/s |
|
|
Typical mounting height |
3 meters (up to 5 meters) |
|
|
IP Rating |
IP20 |
|
|
Operating temperature |
-20℃ ~ 45℃ |
|
|

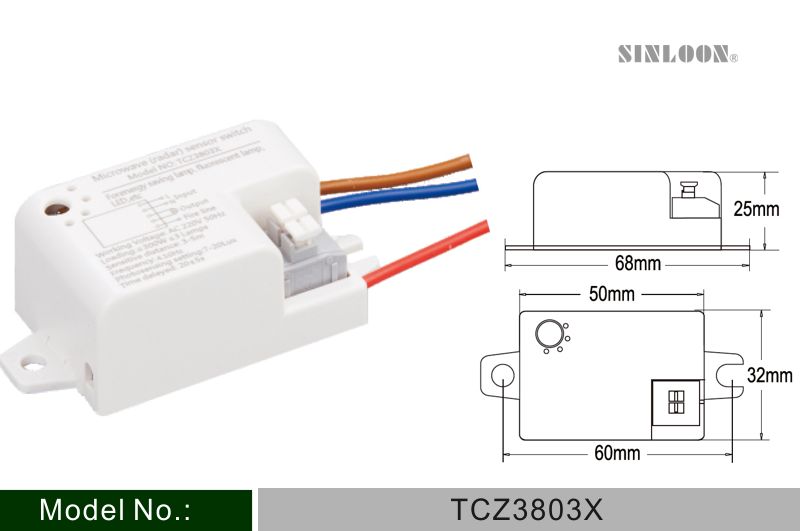

Size (mm) |
L68*W32*H25 |
|
|
Packing |
Quantity: 50pcs / Box, 500 pcs / Carton |
|
