微波雷達感測器開關系列

Microwave (Radar) Sensor Switch Series

Data Specification.

Model No.

21-4118

Working Voltage

AC110 - 220V   50/60Hz

Controllable Loading

≦ 40W ≦ 5 lamps

Standby power consumption

≦ 1W (Standby)

Start Lux Setting

<2Lux/<25Lux/<2000Lux (Gear selection)

Induction range

The radius of the induction top is 1-2 meter and the wall is 4-6 meters

Time delayed

3secs/45secs/4mins (Gear selection)

Detection angle

110°.

Mounting height

1.5m (ceiling installation); <3.5m (wall installation).

Operating temperature

-20℃ ~ 45℃

IP rating

IP 20

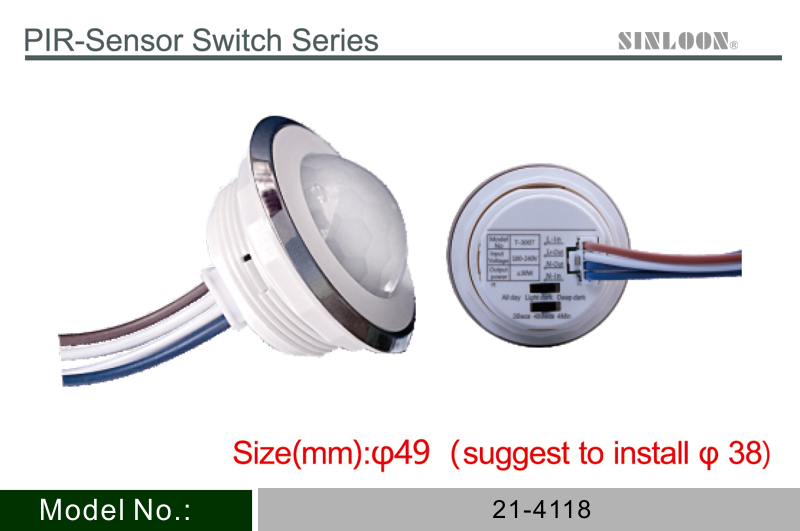

Size (mm)

Ø49 (suggest to install Ø38)

Packing

Quantity: 10pcs/Box, 50Box / Carton

• 「本公司保留隨時修改或變更內容之權利，恕不另行通知。」
• 「The company reserves the right to modify or change the content at any time without prior notice. 」
