Infrared sensor switch 21-4119

週四, 10 九月 2026 00:00 PIR 21-4119 Automatic Sensor Switch - Infrared sensor switch series

微波雷達感測器開關系列 Microwave (Radar) Sensor Switch Series Data Specification.
Model No.	21-4118
Working Voltage	AC100 - 240V 50/60Hz
Controllable Loading	≦ 30W ≦ 5 lamps
Standby power consumption	≦ 1W (Standby)
Start Lux Setting	<10Lux
Induction range	The radius of the induction top is 1-2 meter and the wall is 4-6 meters
Time delayed	40±10secs
Detection angle	110°.
Mounting height	1.5m (ceiling installation); <3.5m (wall installation).
Operating temperature	-20℃ ~ 45℃
IP rating	IP 20

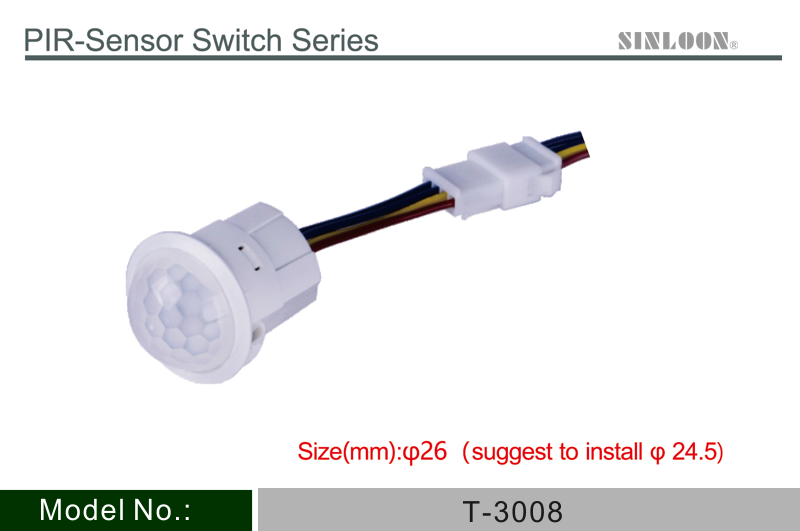

Size (mm)	Ø26 (suggest to install Ø24.5)
Packing	Quantity: 20pcs/Box, 50Box / Carton
「本公司保留隨時修改或變更內容之權利，恕不另行通知。」「The company reserves the right to modify or change the content at any time without prior notice. 」
