美隆電子有限公司

聲光可控制延時開關系列

Acoustic Optical Controllable Time Delayed Switch Series

Data Specification.

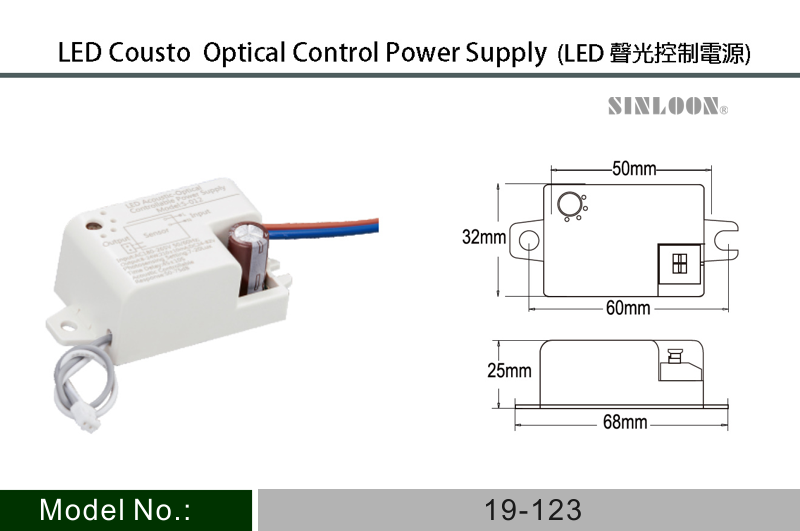

Model No.

19-123

Working Voltage

AC220V   50/60Hz

Output Voltage

DC24-82V

Current

210 ±10mA (Customizable)

Controllable Loading

8-24W

Standby power consumption

≦ 1W (Standby)

Star decibel

75db (5meter range)

Start Lux Setting

<10Lux

Time delayed

40±10secs

Operating temperature

-20℃ ~ 45℃

IP rating

IP 20

Size (mm)

L:68xW:32xH:26

Packing

Quantity: 10pcs/Box, 50Box / Carton

• 「本公司保留隨時修改或變更內容之權利，恕不另行通知。」
• 「The company reserves the right to modify or change the content at any time without prior notice. 」
