瞬態電壓抑制二極體 (TVS)
600W Surface Mount Transient Voltage Suppressor

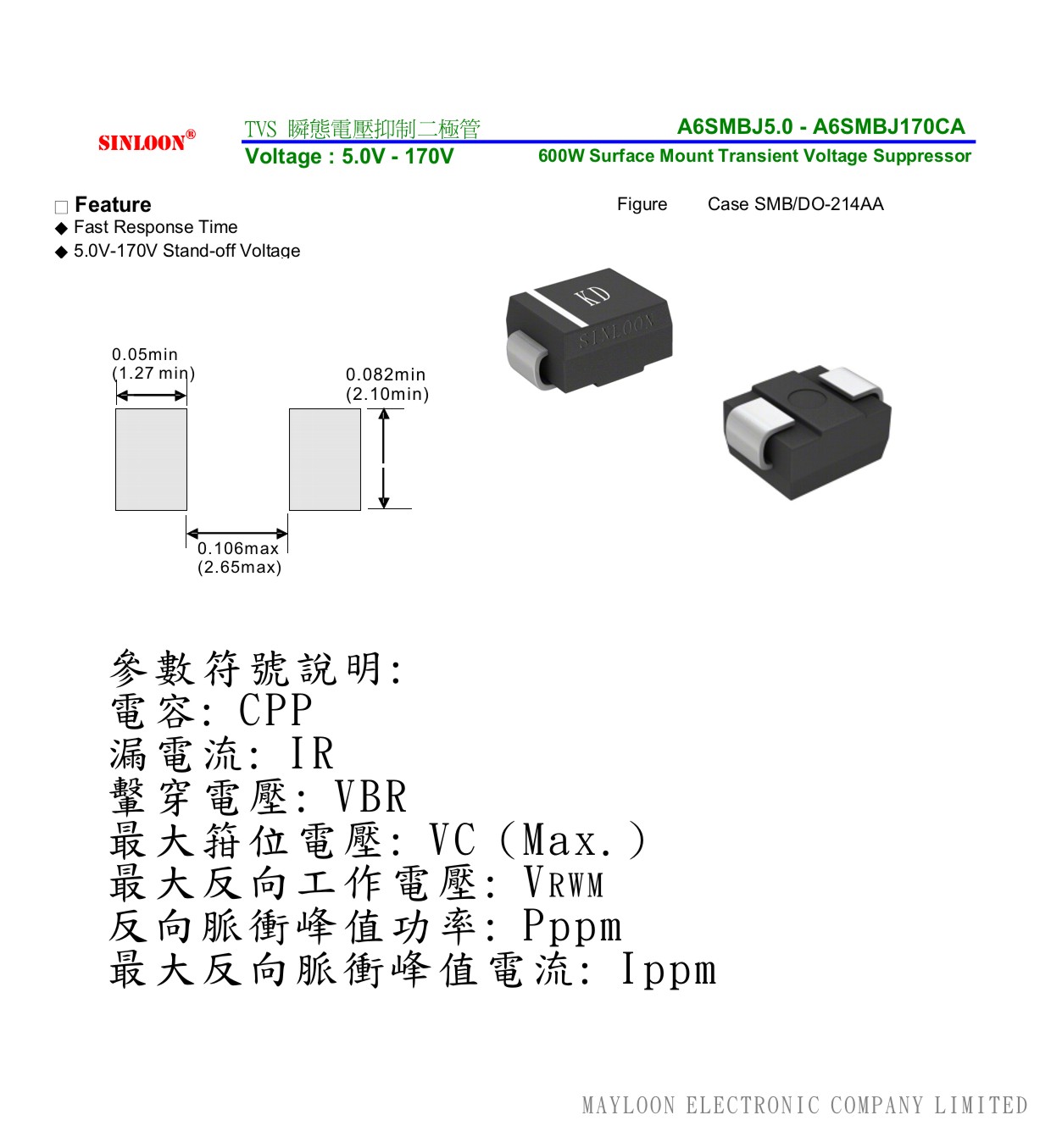

| SINLOON® | TVS 瞬態電壓抑制二極管 | A6SMBJ5.0 - A6SMBJ170CA | |||||||
| Voltage : 5V - 170V | 600W Surface Mount Transient Voltage Suppressor | ||||||||
| Maximum Ratings and Electrical Characteristics @TA=25℃ unless otherwise specified | |||||||||
| CHARACTERISTIC | Symbol | Value | Unit | ||||||
| Peak Pulse Power Dissipation 10/1000μS Waveform (note 1,2) Figure 3. | PPPM | 600 Min. | W | ||||||
| Peak pulse current on 10/1000μS Waveform (note 1) Figure 4. | IPPM | Table 1 | A | ||||||
| Steady state power dissipation (note 4) | PM(AV) | 5.0 | A | ||||||
| Peak Forward Surge Current 8.3ms Single Half Sine-Wave | IFSM | 100 | W | ||||||
| Superimposed on Rated Load (JEDEC Method) Note 2, 3) | |||||||||
| Typical thermal resistance, Junction to lead (note 5) | RθJL | 20 | ℃/W | ||||||
| 100 | ℃/W | ||||||||
| Operating and Storage Temperature Range | Tj, TSTG. | -55~+150 | ℃ | ||||||
| Note: | 1. Non-repetitive current pulse per Figure 4 and derated above T A =25℃ per Figure 1. | ||||||||
| 2. Mounted on 5.0mm2 copper pad to each terminal. | |||||||||
| 3. 8.3ms single half sine-wave cycle = 4 pulses per minutes maximum. | |||||||||
| 4. Lead temperature at 75℃. | |||||||||
| 5. Peak pulse power waveform is 10/1000μS. | |||||||||
| 6. Mounted on minimum recommended pad layout. | |||||||||
| 特性: | |||||||||
| 1.高效能保護器件; 2.吸收反向瞬態脈衝; 3.漏電流低轚穿電壓徧差小; 4.電路異常下反應快. | |||||||||
| 符號說明: | |||||||||
| 電容 (CCP) ; 漏電流 (IR) ; 轚穿電壓 (VBR); 最大箝位電壓 (VC) ; 最大反向工作電壓 (VRWM); | |||||||||
| 反向脈衝峰值功率 (Pppm) ; 最大向反向脈衝峰值電流 (Ippm) |
|
||||||||
