DALI Dimmer

週三, 25 一月 2017 04:32 Lighting - LED Dimmer

知慳惜電

SINLOON^®		LED 調光器 (手動)					Model:	ADTGQDALI-01
		LED Dimmer					Power:	DALI Dimmer
ADTGQDALI-01
♦Product Features:						-	-
♦Input voltage Direct Current 16V.
♦Output: A group of DALI.
♦A series of DALI Intelligent dimmable small control system, use need no other
♦DALI system or DALI main wire; DALI dimmer have 4 methods to control
and dimming: Manual rotate dimming / short press turn on and long press turn off, Remote
to control ON/OFF and dimming, Computer blue-tooth programming and control dimming,
Mobile phone blue-tooth programming and control dimming.
♦Use to dimmable electronic ballast and LED dimmable driver.
♦Accord with national standards panel 86 shell, size 868655 mm.
♦Easy wiring, suitable for family, office, products show room, exhibition, and so on.

♦Data Specification:
Model:		I/P	Fn	Dim. Signal		Dim Current		SW Current
ADTGQDALI-01		DC 16V	50/60Hz	DALI		Dali Signal		Dali Signal
Ta:	0-50℃

♦Measurement
Dimension (mm)			L	W	H
			87	87	55

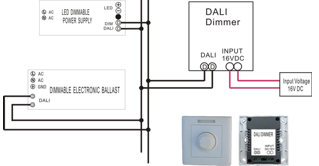

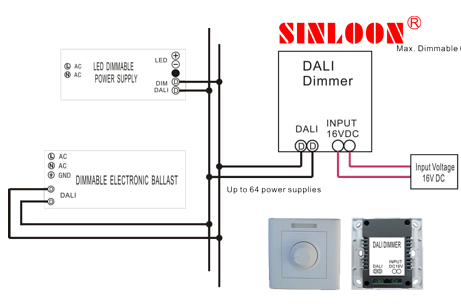

♦Wiring diagram
					產品說明:
					◎ 不需要添加任何外接電源.
					◎ 可以用於直接控制電燈開關.
					◎ 產品具有完整的旋轉分壓功能無頻閃.
					◎ 可以通過控制交流接觸器來控制大電流.
					◎ 旋轉調光開關或按鈕調光開關二種型號可供選擇.
					◎ 適用於低壓控制並接合有0-10V接口的可調光
					LED鎮流器一起使用.
					◎ 產品必須按照調光器線路圖正确連接.
♦Packaging
Quantity		Carton size		Box volume (m3)		N.W		G.W.
40 pcs		380350190mm		0.027		5.2Kg		6.0Kg
Box:		Tan/Five/Layer						-
Each dimmer packing White paper box.
