SURFACE MOUNT FAST SWITCHING DIODE
FEATURE:
◆ Fast Switching Speed
◆ High Conductance
◆ Surface Mount Package Ideally Suited for Automatic Insertion
◆ For General Purpose Switching Application
◆ Plastic Material - UL Recognition Flammability Classification 94V-0
MECHANICAL CHARACTERISTICS:
◆ Case: SOD-323 Molded Plastic
◆ Weight: 0.004 Grams (approx)
◆ Marking: Body top
◆ Terminals: Plated leads solderable per MIL-STD-202, Method 208.
◆ Mounting: Position any
◆ Lead Free for RoHS Lead free version and "LF" suffix to part number.

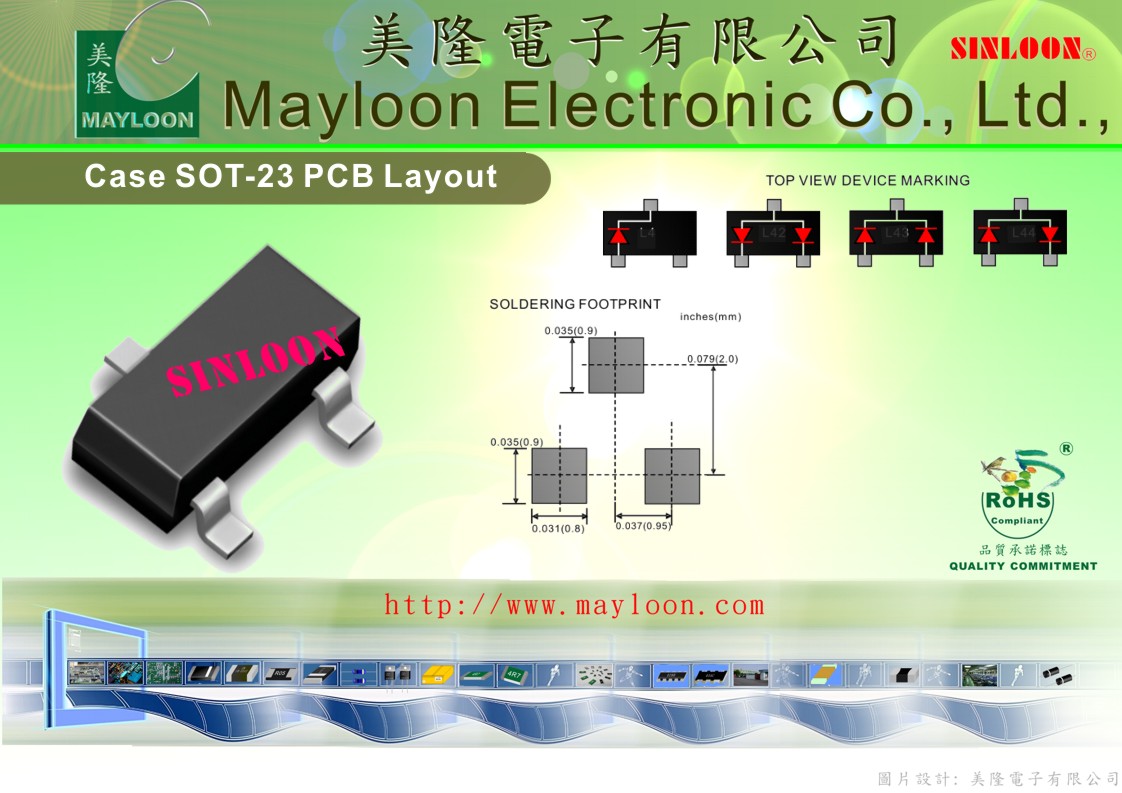

| Parameter at Tamb = 25℃ | (貼片二極管特性參數) | SINLOON® | ||||||||
| 型號 | 類型 | VRRM | IFSM | IF(AV) | 型號 | 類型 | VRRM | IFSM | IF(AV) | |
| Part No. | Type | (V) | (mA) | (mA) | Part No. | Type | (V) | (mA) | (mA) | |
| BAV19WS | SOD-323 | 100V | 250 | 400 | CD4148WSN | 0805 | 100 | 500 | 150 | |
| BAV20WS | SOD-323 | 150V | 250 | 400 | CD4148WSP | 0805 | 75 | 500 | 150 | |
| BAV21WS | SOD-323 | 200V | 250 | 400 | CD4148WTN | 0603 | 90V | 500 | 150 | |
| BAV56 | SOT-23 | 75 | 200 | 300 | CD4148WTP | 0603 | 75 | 500 | 150 | |
| BAV56W | SOT-323 | 75 | 200 | 300 | CDBAV21W | 1206 | 200 | 500 | 200 | |
| BAV70 | SOT-23 | 75 | 200 | 300 | CDBAV21WS | 0805 | 200 | 500 | 200 | |
| BAV70W | SOT-323 | 75 | 200 | 300 | CDBAW56 | SOT-23 | 70 | 200 | 200 | |
| BAV99 | SOT-23 | 75 | 200 | 300 | CDBAV70 | SOT-23 | 70 | 200 | 200 | |
| BAV99W | SOT-323 | 75 | 200 | 300 | CDBAV99 | SOT-23 | 70 | 200 | 200 | |
| CD4148WN | 1206 | 100 | 500 | 150 | IN4148W | SOD-123 | 75 | 200 | 150 | |
| CD4148WP | 1206 | 75 | 500 | 150 | MMBD4148 | SOT-23 | 75 | 200 | 300 | |
|
|
||||||||||
