Gold Capacitor K-DCLH

Electric Double Layer Capacitor - (金電容)
6.3V  0.47F/0.68F/1.0F

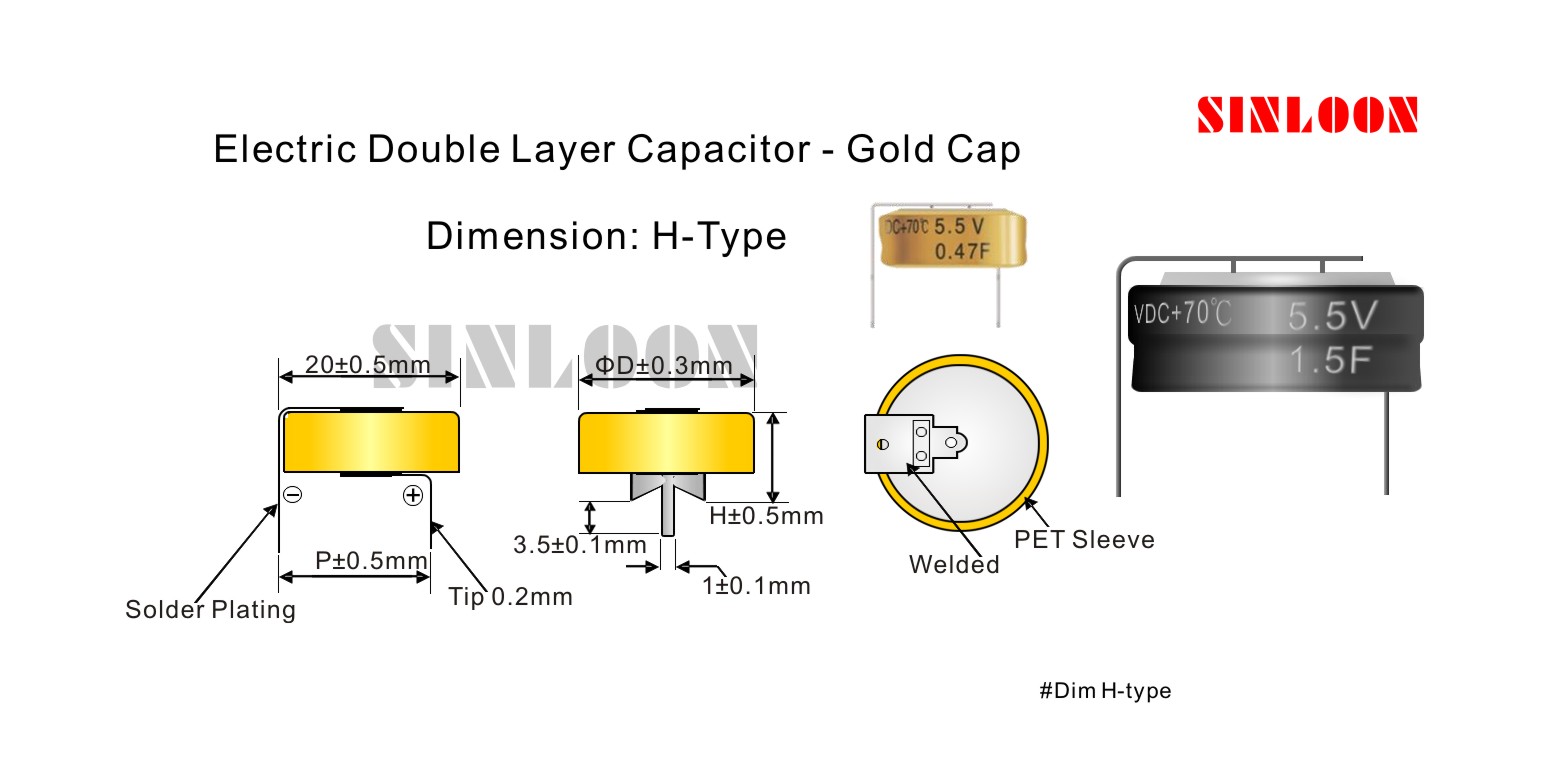

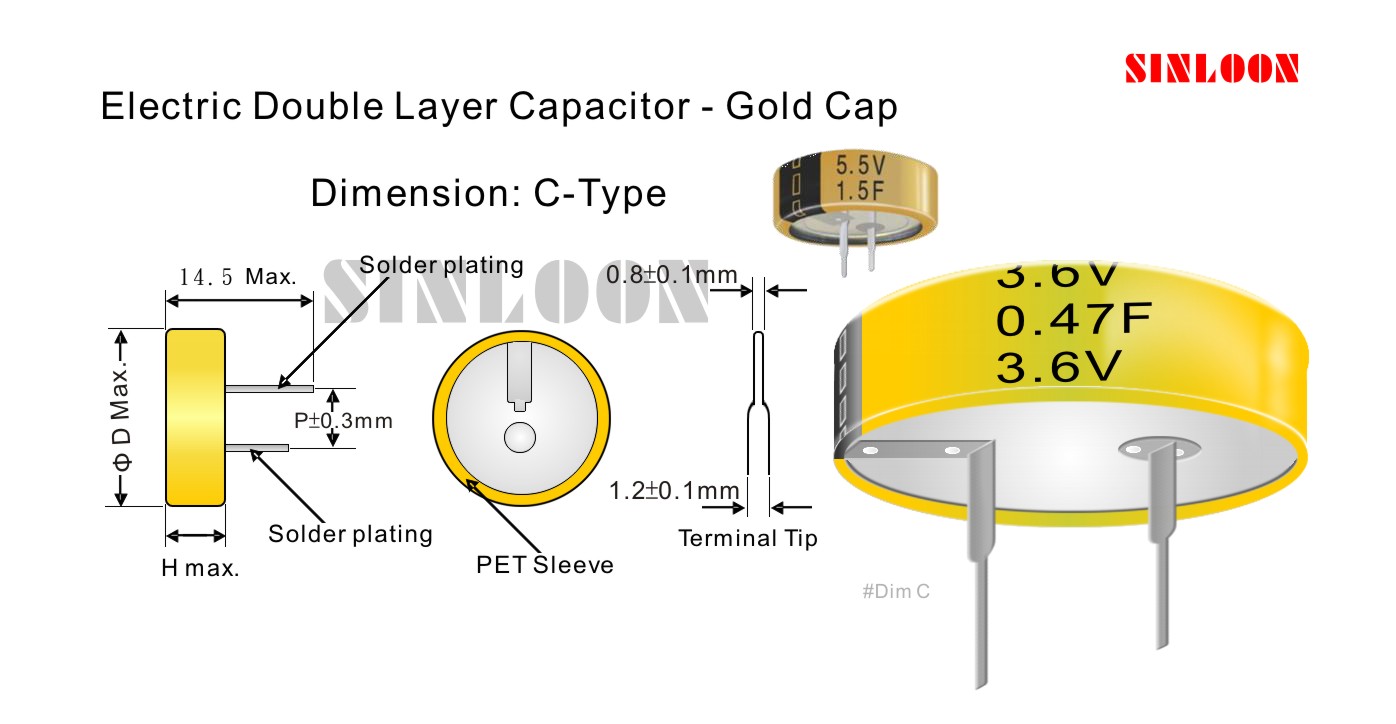

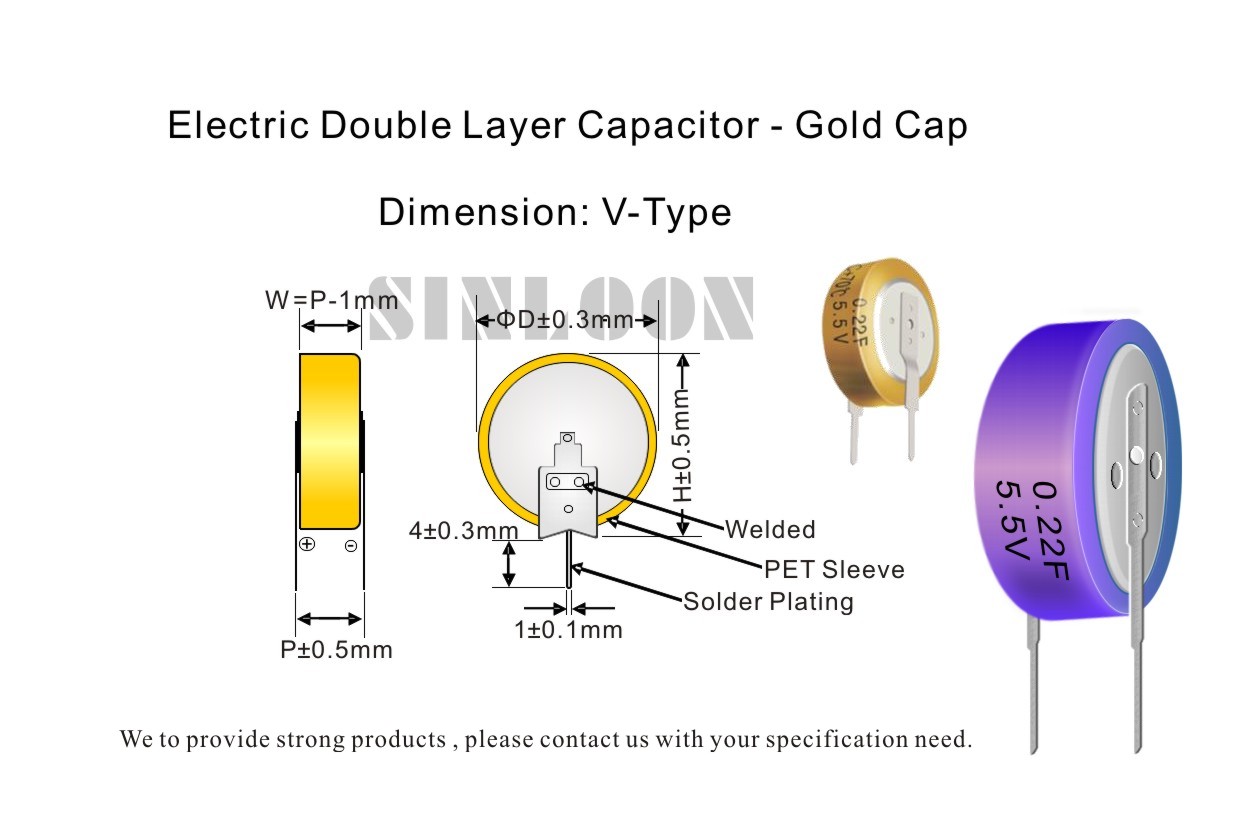

C-Type H-Type V-Type
PDF File  Data Spec Gold Capacitor K-DCLH (6.3V) Series 產品應用
Features: (特性) Electric double layer capacitor
High voltage (6.3V) and highly reliable (高壓及可靠) 雙電層電容器,被稱為 "黃金電容"
Smaller and lighter then K-DCL Series (更小更輕系列) 它提供所有電容器技術最高的容
Wide temperature range (-25~85) than battery 積效率,不依靠化學反應產生電量.
makes periodic change unnecessary. 它利用吸收/釋放的離子反應特性
溫度範圍由(-25~85),不必要如電池需要周期性更換. 成為一個儲存單元,被比作儲電池.
Specification SINLOON®
Part No. Type Capacitor Voltage ESR Operature Temperature C-Type H-Type V-Type
K-DCL-5R5-105 1.0 F 5.5V 30 Ω -25 ~ +70
K-DCL-5R5-155 1.5 F 5.5V 30 Ω

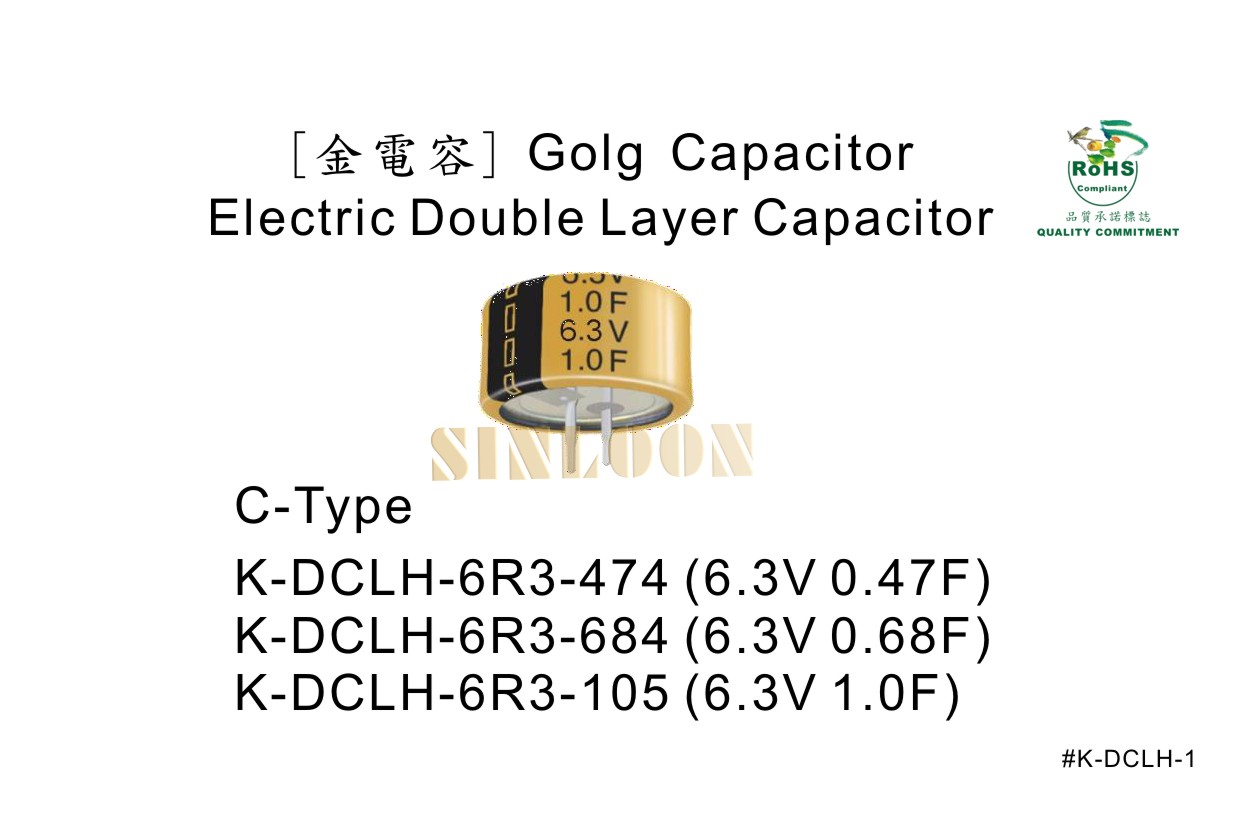

K-DCLH-6R3-474 0.47 F 6.3V 50 Ω -25 ~ +85
K-DCLH-6R3-684 0.68 F 6.3V 50 Ω
K-DCLH-6R3-105 1.0 F 6.3V 50 Ω
K-DCLT-3R6-105 1.0 F 3.6V 30 Ω -25 ~ +85
K-DCLT-5R5-474 0.47 F 5.5V 50 Ω
K-DCLT-5R5-684 0.68 F 5.5V 50 Ω
K-DCLT-5R5-105 1.0 F 5.5V 50 Ω
K-DCS-5R5-473 0.047 F 5.5V 120 Ω -25 ~ +70
K-DCS-5R5-104 0.1 F 5.5V 75 Ω
K-DCS-5R5-224 0.22 F 5.5V 75 Ω
K-DCS-5R5-334 0.33F 5.5V 50 Ω
K-DCS-5R5-474 0.47 F 5.5V 50 Ω
K-DCST-3R6-473 0.047 F 3.6V 75 Ω -25 ~ +85
K-DCST-3R6-334 0.033 F 3.6V 50 Ω

金電容
