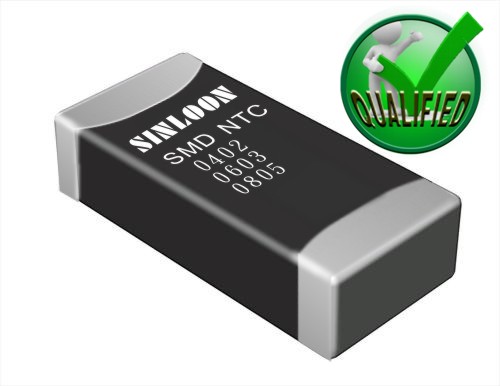

NTC SMD Thermistor - 0603 (貼片熱敏電阻)
| NTC SMD-0603 DATA SPECIFICATION | |||||||
| Part Number (0603) | Resistance | B-constance | Maximum | Dissipation | |||
| 25℃(Ω) | 25℃/85℃ K | Power Rating | Constant | ||||
| SMD03-102□2S | 1K | 2950 | 350 mW | 3.5 mW/℃ | |||
| SMD03-202□4C | 2K | 4150 | 350 mW | 3.5 mW/℃ | |||
| SMD03-332□3C | 3.3K | 3150 | 350 mW | 3.5 mW/℃ | |||
| SMD03-332□3F | 3.3K | 3300 | 350 mW | 3.5 mW/℃ | |||
| SMD03-472□3G | 4.7K | 3340 | 350 mW | 3.5 mW/℃ | |||
| SMD03-502□3G | 5K | 3340 | 350 mW | 3.5 mW/℃ | |||
| SMD03-682□3I | 6.8K | 3435 | 350 mW | 3.5 mW/℃ | |||
| SMD03-103□3I | 10K | 3435 | 350 mW | 3.5 mW/℃ | |||
| SMD03-103□3K | 10K | 3550 | 350 mW | 3.5 mW/℃ | |||
| SMD03-103□3T | 10K | 3970 | 350 mW | 3.5 mW/℃ | |||
| SMD03-223□3R | 22K | 3900 | 350 mW | 3.5 mW/℃ | |||
| SMD03-473□3S | 47K | 3950 | 350 mW | 3.5 mW/℃ | |||
| SMD03-473□4A | 47K | 4050 | 350 mW | 3.5 mW/℃ | |||
| SMD03-503□4A | 50K | 4050 | 350 mW | 3.5 mW/℃ | |||
| SMD03-104□3S | 100K | 3950 | 350 mW | 3.5 mW/℃ | |||
| SMD03-104□4A | 100K | 4050 | 350 mW | 3.5 mW/℃ | |||
| SMD03-104□4H | 100K | 4400 | 350 mW | 3.5 mW/℃ | |||
| SMD03-154□4L | 150K | 4600 | 350 mW | 3.5 mW/℃ | |||
| SMD03-204□4B | 200K | 4055 | 350 mW | 3.5 mW/℃ | |||
| SMD03-224□4B | 220K | 4055 | 350 mW | 3.5 mW/℃ | |||
| SMD03-334□4B | 330K | 4100 | 350 mW | 3.5 mW/℃ | |||
| SMD03-474□4B | 470K | 4100 | 350 mW | 3.5 mW/℃ | |||
| SMD03-564□4B | 560K | 4100 | 350 mW | 3.5 mW/℃ | |||
| 熱敏電阻特性: | 其電阻值與溫度成反比,溫度越高電阻值變小,溫度降低阻值變大, | ||||||
| 其對溫度的感測非常敏感,適用於各種溫度的感測與補償電路. |  |
||||||
| 其 B 值與電阻溫度係數正相關,即是說 當B值越大其電阻溫度係數也就會越大, | |||||||
| 感應度越敏感. | |||||||
